Alpha Marathon’s Double bubble film lines produce high quality multilayer barrier films for superior packaging product.

Each machine designed to provides required orientation in both directions to meet the needs of our customers continuously evolving demands.

Calibration rings designed to ensures that quenching of primary tube is well control.

Basically there are various production applications for this type of Bi-Oriented line.

  • Meat Packaging
  • Cheese Packaging
  • High barrier, low shrinkage food packaging
  • Seafood and Poultry Shrink film


Materials: PA, EVOH, PVdc, mLDPE, EVA, Tie

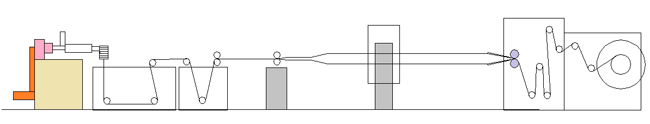

Alpha Plus Bi-Oriented Barrier Shrink film

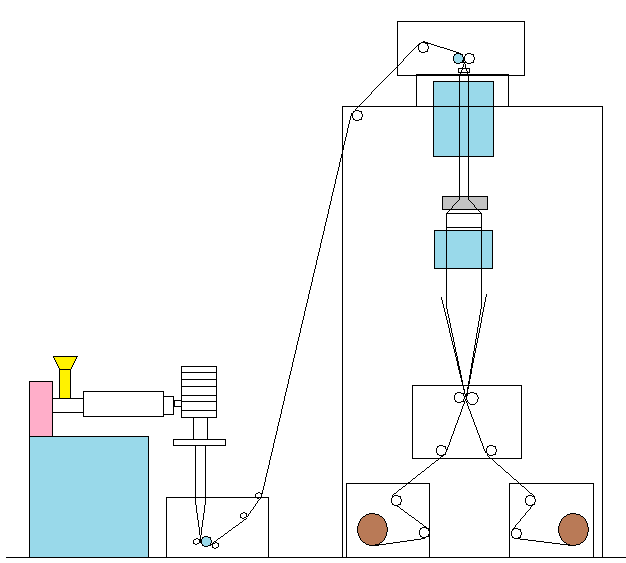

Bi-Oriented Shrink Film Lines

Double Bubble models:

Model

BX2-2

BX2-4

BX2-6

Film width

200

400

600

Thickness micron

30-90

30-90

30-90

Layers

5,7,9,11

5,7,9,11

5,7,9,11

Water Bath

2

2

2

Output Capacity (kg/hr)

50-60

60-100

100-150

Winder

Turret/Surface

Turret/Surface

Turret/Surface

Gauge Oscillation

Vertical Nip

Vertical Nip

Vertical Nip

Max. Speed (mpm)

100

100

100

Annealing method

4 Hot Roller

4 Hot Roller

4 Hot Roller

Max. Roll Diameter

800

800

800

Air Shaft Dia. (mm)

76,152

76,152

76,152

Other models:

Model

BX3-2

BX3-4

BX3-6

Film width

200

400

600

Thickness micron

30-90

30-90

30-90

Layers

5,7,9,11

5,7,9,11

5,7,9,11

Water Bath

2

2

2

Output Capacity (kg/hr)

50-60

60-100

100-150

Winder

Turret / Surface

Turret / Surface

Turret / Surface

Gauge Oscillation

Oscillation platform

Oscillation platform

Oscillation platform

Max. Speed (mpm)

100

100

100

Annealing method

Infrared heaters

Infrared heaters

Infrared heaters

Max. Roll Diameter

800

800

800

Air Shaft Dia. (mm)

76,152

76,152

76,152

Bi-Oriented Multilayer Lines
