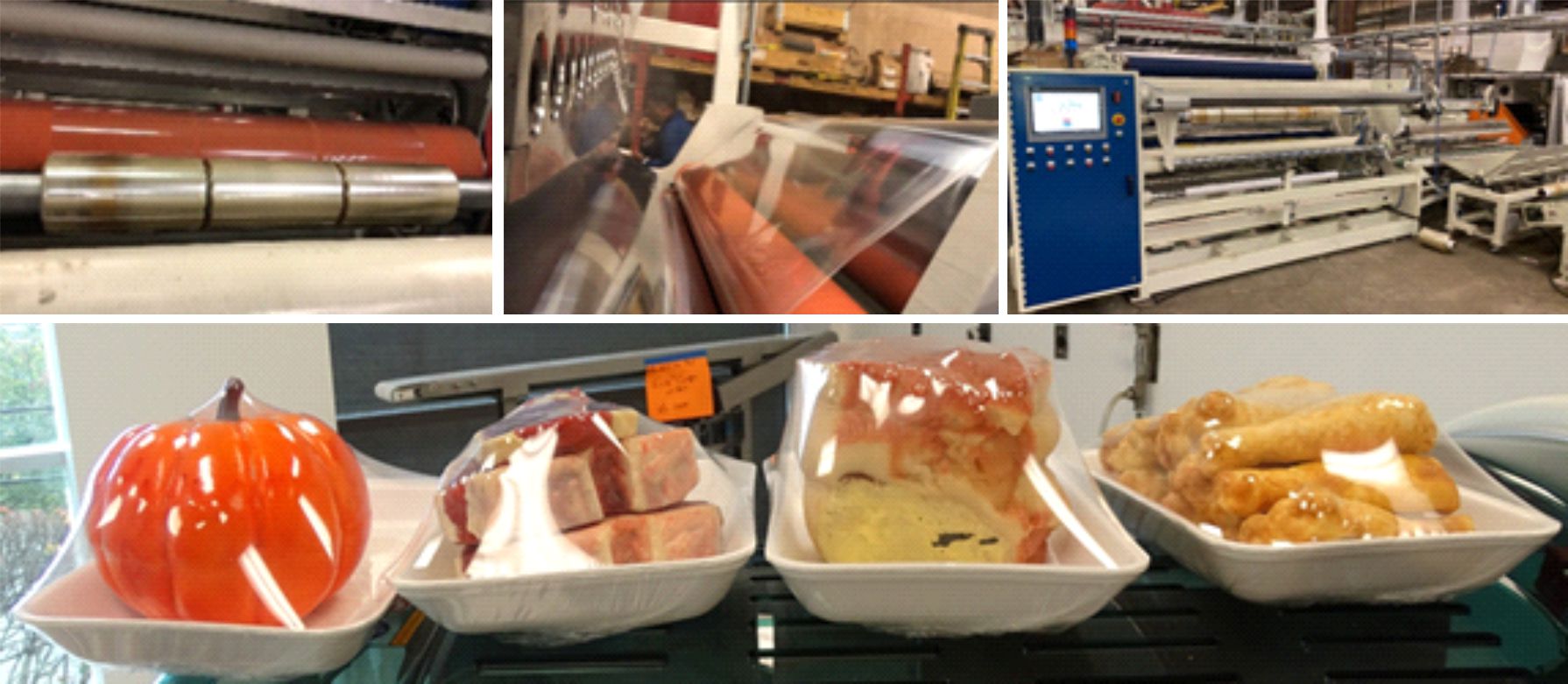

ALPHA CLING - PVC stretch film lines
Alpha Marathon's ALPHA CLING PVC Film Lines is used mainly for food wrap application.
Line can produce high quality clear rolls by using PVC compounded material or PVC granule.
Alpha Marathon offer its PVC film line as turn key project which comes with PVC Compounding mixer, Pressure chamber, Roll Edge Cutters and Scrap Roll Cutters.
Defected scrap rolls and trims are 100% recyclable into system and Alpha’s design ensured for a fully profitable production line.
Line equipped with thickness read-out system to optimize monitoring of quality for final production.
Key Machine features
- >High speed production line
- Special Screw and Die design
- Thin gauge production (<8 micron)
- Low scrap rate
- Transparent, natural and pre-color compound can be formulated
- Able to handle either Compound powder or Granule as raw material
PVC Stretch Film Lines
Cling PVC Film Production
|
Parameters |
Alpha Cling 10 |
Alpha Cling 15 |
Alpha Cling 20 |
Alpha Cling PRO |
|
Technology |
Single
Screw Extruder |
Single
Screw Extruder |
Single
Screw Extruder |
Tandem:
Planetary + Single Screw Extruders |
|
Raw
Material |
Plasticized PVC Pellets |
Plasticized PVC Pellets |
Plasticized PVC Pellets |
Plasticized PVC Dry Blend |
|
Final
Width |
1000 mm |
1500 mm |
2000 mm |
2000 mm |
|
Film
Thickness |
9-25
micron |
9-25
micron |
9-25
micron |
8-25
micron |
|
Output
kg/h |
80-100 |
100-150 |
180-220 |
250-270 |
|
Max Roll
Dia. |
300 mm |
300 mm |
300 mm |
300 mm |
|
Number of
Ups |
2-3 |
3-4 |
4-5 |
4-5 |
|
Core Dia. |
76 mm |
76 mm |
76 mm |
76 mm |
|
Roll and
Core Handling |
Manual |
Manual |
Manual |
Manual or
Automatic Core Feeding and Roll Unloading |
Features of Product:
- Increasing shelf life
- Complied with FDA and food-safety requirements
- Highly glossed
- Transparent
- • For use in Automatic Wrapping Machine or Hand Wrap
