Web handling is carefully monitored to preserve the quality of the film.

Alpha Marathon has devised a system that regulates process conditions to balance web tension according to the line speed. This ensures the web does not sag which can cause the web to form wrinkles as well as disrupt the line.

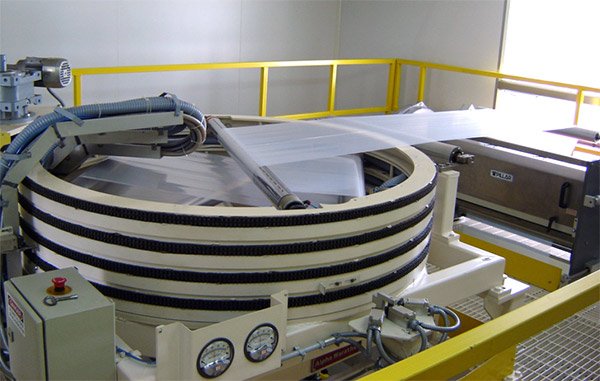

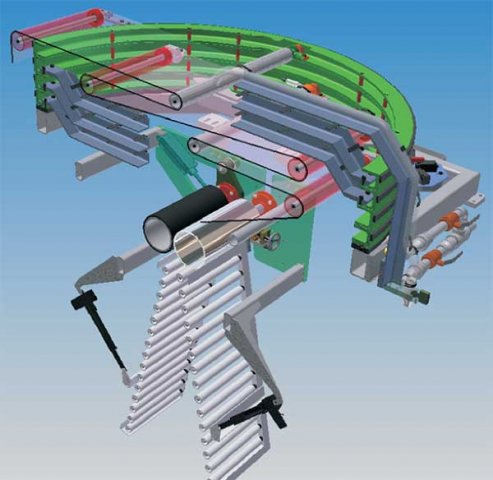

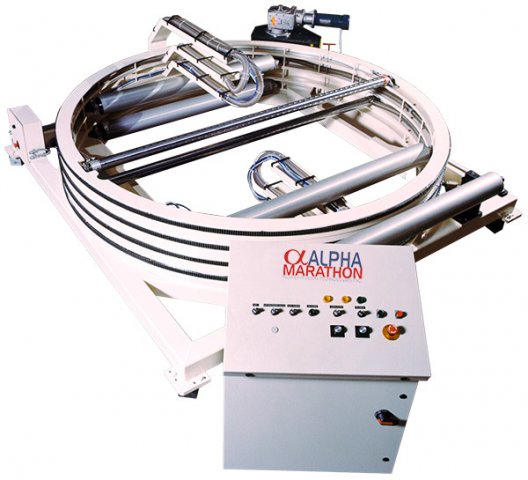

Alpha Marathon’s unique low profile design horizontal film oscillator provides superior stability across the face of the web, minimising web wander and eliminating wrinkle problems inherent in many designs.
The low profile design is ideal when dealing with tower height issues as well as retrofit applications where space may be limited.
The "ezy float" system provides a cushion of air for the film to travel over making the HFO ideal where tackier film applications and thin film applications may have been problematic.

Features & Benefits

• Reinforced turning bars to prevent turning bar deflections.
• Open center design and idler rolls minimizes web wandering problems
• Low profile design with high stability
• Zero backlash driven support rings, alignment holes in each ring provide precise positional relationships between idler rolls and turning bars.
• Push button controls let you change thread up mode, reverse direction and change the oscillation period to match your process. All controls can be wired for remote operation.
• Float equalization air distribution system to maintain uniform film float throughout the oscillating process.
• Low maintenance

Brochure download

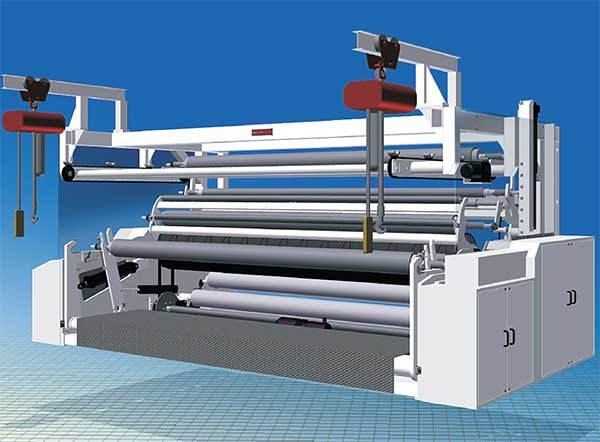

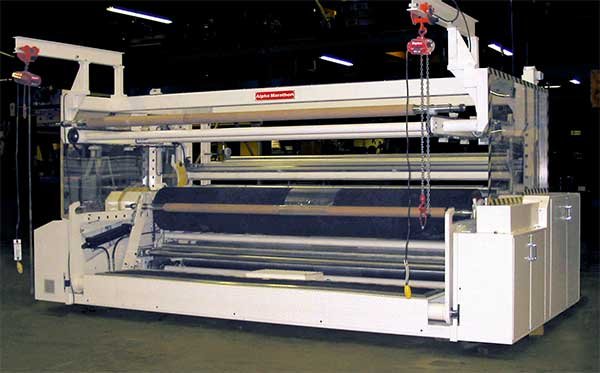

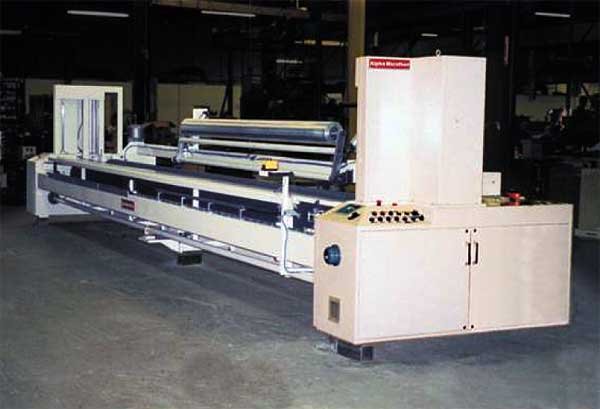

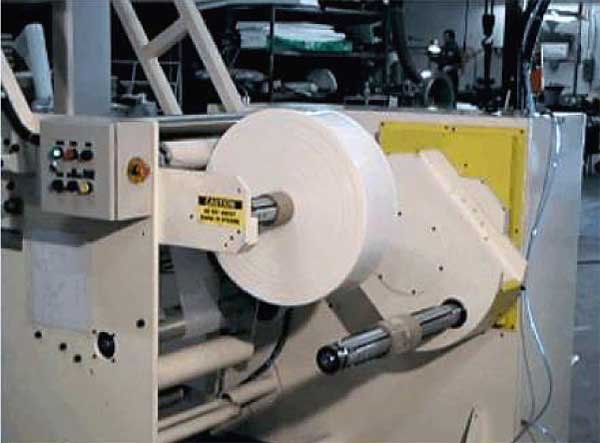

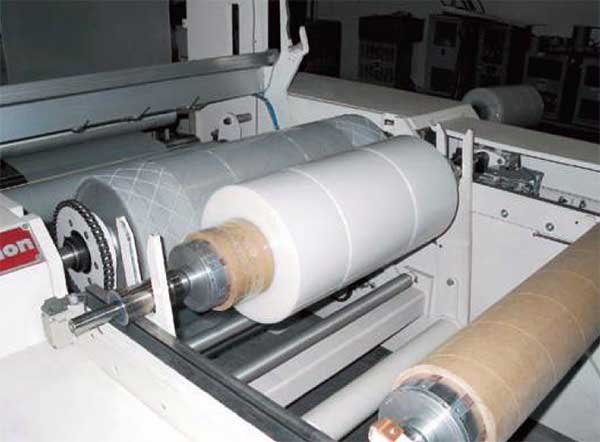

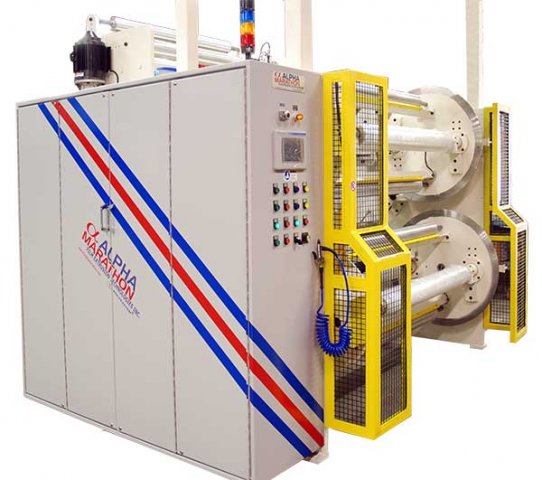

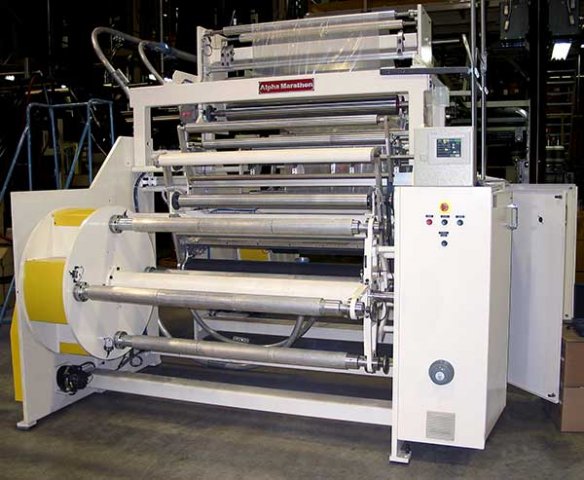

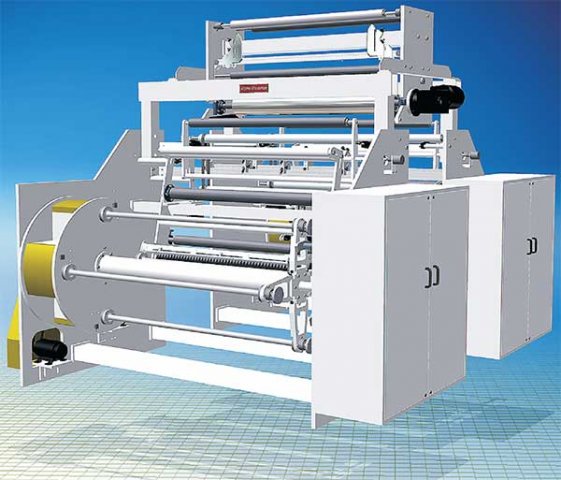

Alpha Marathon offers a complete line of winders for both blown and cast film extrusion applications.
Alpha has successfully provided winders for heavy duty geo membrane films to high speed stretch film applications
We design and manufacture surface, turret, drum and gap winding configurations for high and low speed applications focusing on end roll quality.
Alpha winders range from semi automatic features to a fully automatic system featuring core loading and finished roll offload.

Surface and Drum Winders - Features & Benefits

• Heavy-duty construction for long-term performance
• Integrated secondary nip
• Tapered tension control for quality film rolls
• Center assist
• Automatic core transfer
• Gap winding mode
• Constant or tapered contact pressure
• Edge trim and in-line slitting
• PLC and Digital drives

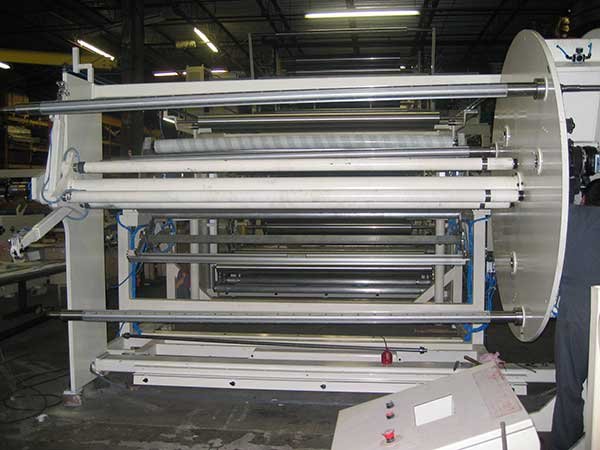

Turret Winders  - Features & Benefits

• Heavy-duty construction for long-term production
• Integrated secondary nip
• Tension control for quality film rolls
• Lay-on roll assembly
• Automatic indexing
• Large diameter rolls
• Edge trim and in-line slitting
• Programmable controls on winders
• Line speeds up to 1500 fpm
• PLC and digital drives

Brochure download

Alpha Marathon offers a complete line of top nips with collapsing frame and optional gusseting assemblies up to 300” in width.
Robust in design, Alpha top nips are designed to provide years of maintenance free service.
Collapsing frame assemblies available in multiple L/D ratios and collapsing surfaces suited to customer application.

FEATURES:

• Heavy duty construction
• AC vector duty motor and drives
• Neoprene rubber and chrome pinch rollers
• Pneumatically retracted chrome roller allows access for thread up
• Collapsing frame and side gusseting features
• Collapsing frame surface and L/D ratio chosen to match application.
• Collapsing surface options include: pearl slats, maple slats, FDA low friction segmented rollers, brush rollers and aluminum air slats
• Gusseting and side stabilizer options

Brochure download
